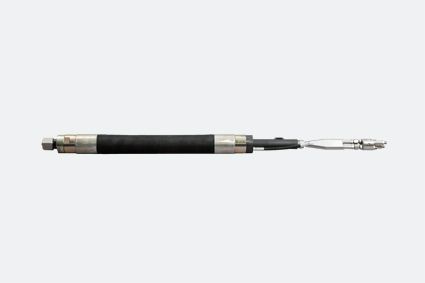

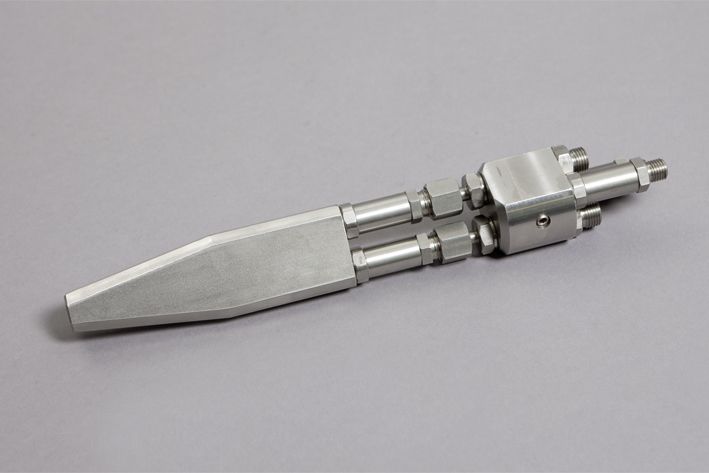

2C inflatable packer TPE 82

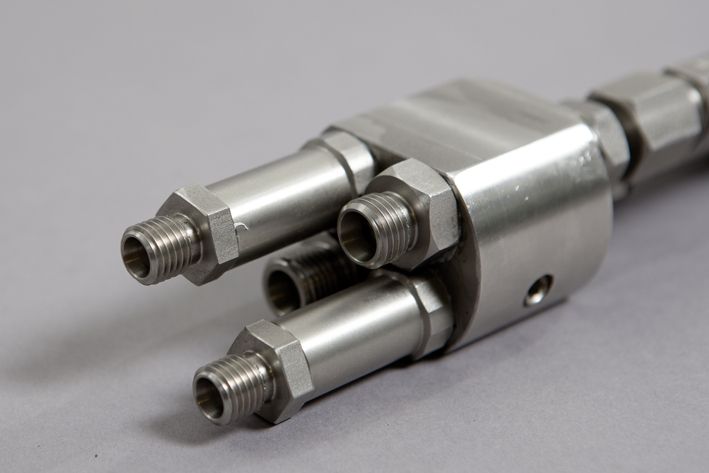

450 mm inflation hose length, mixing unit, non-return valve, connection thread for material hose component A: M16x1.5; component B: M14x1.5, rinsing pump 2x M12x1.5; connecting thread for expansion line inside M10x1
The entered access data are not correct. Please try again.
Become a customer
You do not have a login? Please contact us.
Material to be used
acrylate gel micro cement 1C injection resin silicate resin polyurethane aqueous solution 2C injection resin injection mortar cement paste cement suspension insulating material water 2C polyurethane Technical data
Type 2C-TPE 82 Borehole Ø min.-max. 82-158 mm Borehole Ø 86 mm max. expansion pressure 120 bar, max. injection pressure 90 bar Borehole Ø 100 mm max. expansion pressure 90 bar, max. injection pressure 70 bar Borehole Ø 120 mm max. expansion pressure 70 bar, max. injection pressure 50 bar Borehole Ø 135 mm max. expansion pressure 55 bar, max. injection pressure 30 bar Borehole Ø 139 mm max. expansion pressure 45 bar, max. injection pressure 25 bar Borehole Ø 145 mm max. expansion pressure 40 bar, max. injection pressure 20 bar Inflation hose length 450 mm Free passage Ø (injection tube) inside 9 mm Connection thread for material hose outside comp. A M16x1.5 Connection thread for material hose outside comp. B M14x1.5 Connection thread for material hose outside rinsing pump 2 x M12x1.5 Connection thread for expasion line inside M10x1 Weight 11.80 kg Total length 1.270 mm Securing cord eye
Accessories
