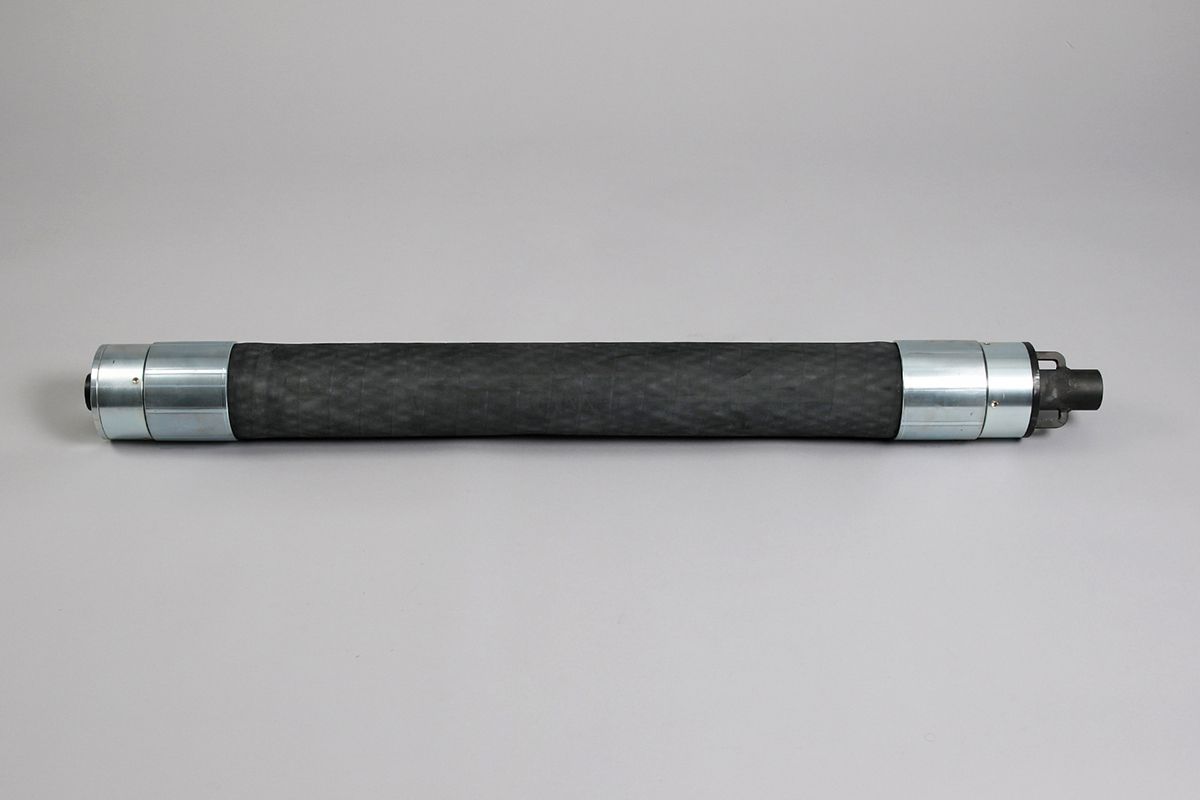

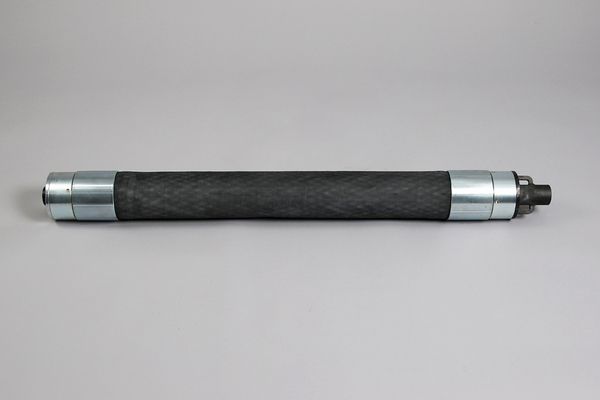

Single inflatable packer TPE 131
830 mm inflation hose length, inside Ø 40 mm, connection thread for material hose inside G1 1/4", connection thread for expansion line inside M10x1
The entered access data are not correct. Please try again.
Become a customer
You do not have a login? Please contact us.
Advantage/Notice
Reusable Material-conducting parts of stainless steel or with hardened sealing surface Easy and safe sealing of boreholes Can be used in different depths All parts are easily exchangeable Material to be used
acrylate gel micro cement 1C injection resin silicate resin polyurethane aqueous solution 2C injection resin injection mortar cement paste cement suspension insulating material injection mortar ¹ ² ³ cement paste ¹ ² ³ cement suspension ¹ ² ³ water 2C polyurethane Technical data
Type TPE 131 Borehole Ø min.-max. 131-210 mm Borehole Ø 135 mm max. expansion pressure1005 bar, max. injection pressure 80 bar Borehole Ø 139 mm max. expansion pressure 95 bar, max. injection pressure 75 bar Borehole Ø 145 mm max. expansion pressure 90 bar, max. injection pressure 70 bar Borehole Ø 155 mm max. expansion pressure 80 bar, max. injection pressure 60 bar Borehole Ø 175 mm max. expansion pressure 70 bar, max. injection pressure 50 bar Borehole Ø 201 mm max. expansion pressure 45 bar, max. injection pressure 25 bar Inflation hose length 830 mm Free passage Ø 40 mm Connection thread for material hose inside G1 1/4" Connection thread for expansion line inside M10x1 Weight 33.84 kg Total length 1,286 mm Securing cord 2 x eyes
